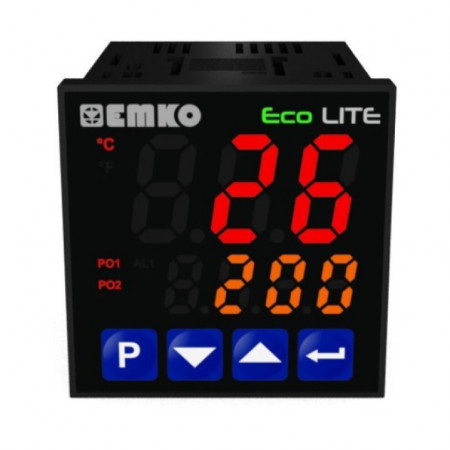

Regulator de temperatura ecoLITE.4.5.2R.0.0 , intrare J, K, R, S, T, L, 2 x ieșiri 1NO, alimentare 230VAC, dimensiuni (L x W x H) 90 x 48 x 48 mm

Caracteristici fizice

Dimensiuni

48 mm x 48 mm x 86,5 mm

Clasa de protectie

Frontal: IP65 ront, Conexiuni: IP20

Instalare

Fixa, pe panou

Temperatura de stocare/operare

0°C...50°C

Umiditate de stocare/operare

RH: max. 90 % (fara condens)

Caracteristici electrice

Tensiune de alimentare

100-240Vac 50/60Hz
115Vac (±%15) 50/60Hz
230Vac (±%15) 50/60Hz
24Vac/dc (±%15) 50/60Hz
24Vac (±%15) 50/60Hz
10-30Vdc

Tip senzori de intrare

Termocuple (TC): J, K, R, S, T, L(IEC584.1)(ITS90)
Termorezistenta (RTD): Cu-50, PT-100 (IEC751)(ITS90)

Scala

Fe CuNi -199°C...900°C / -19,9°C...99.9°C
Ni CrNi -199°C...999°C / -19,9°C...99.9°C
PT13%RhPt 0°C...999°C / 0,0°C...99.9°C
PT10%RhPt 0°C...999°C / 0,0°C...99.9°C
Cu,CuNi -199°C...400°C / -19,9°C...99.9°C
Ni CrNo -150°C...800°C / -19,9°C...99.9°C
Cu50 -199°C...200°C / -19,9°C...99.9°C
PT100 -199°C...650°C / -19,9°C...99.9°C

Precizie

Scale ± %0.25

Iesiri

Iesire pe contact de releu

Relay (5A/250Vac, sarcina rezistiva) – 1NO
Relay (5A/250Vac sarcina rezistiva) – 1NO

Control

Tip control

ON/OFF

Frecventa de citire senzor

0.1 second

Certificari

CE
